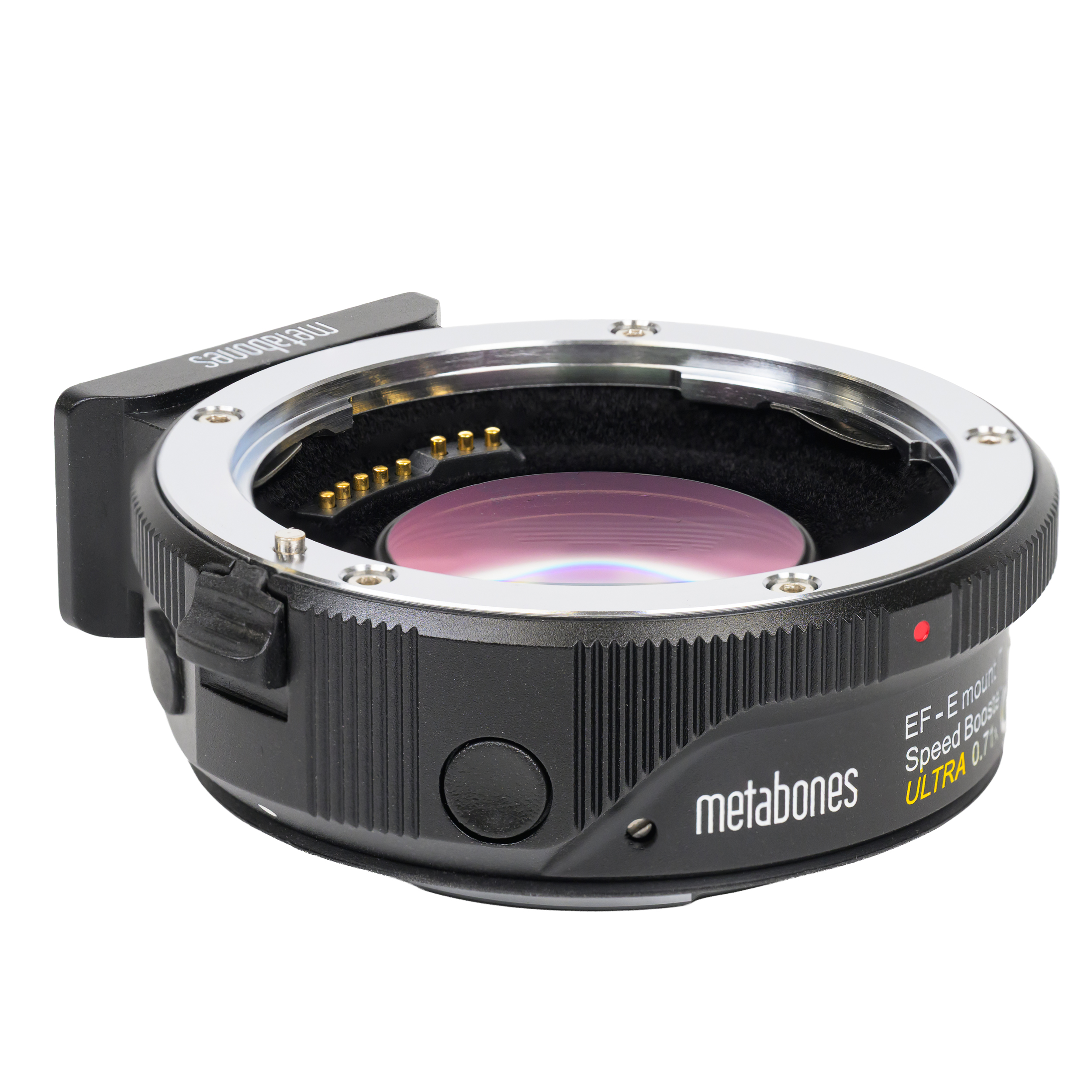

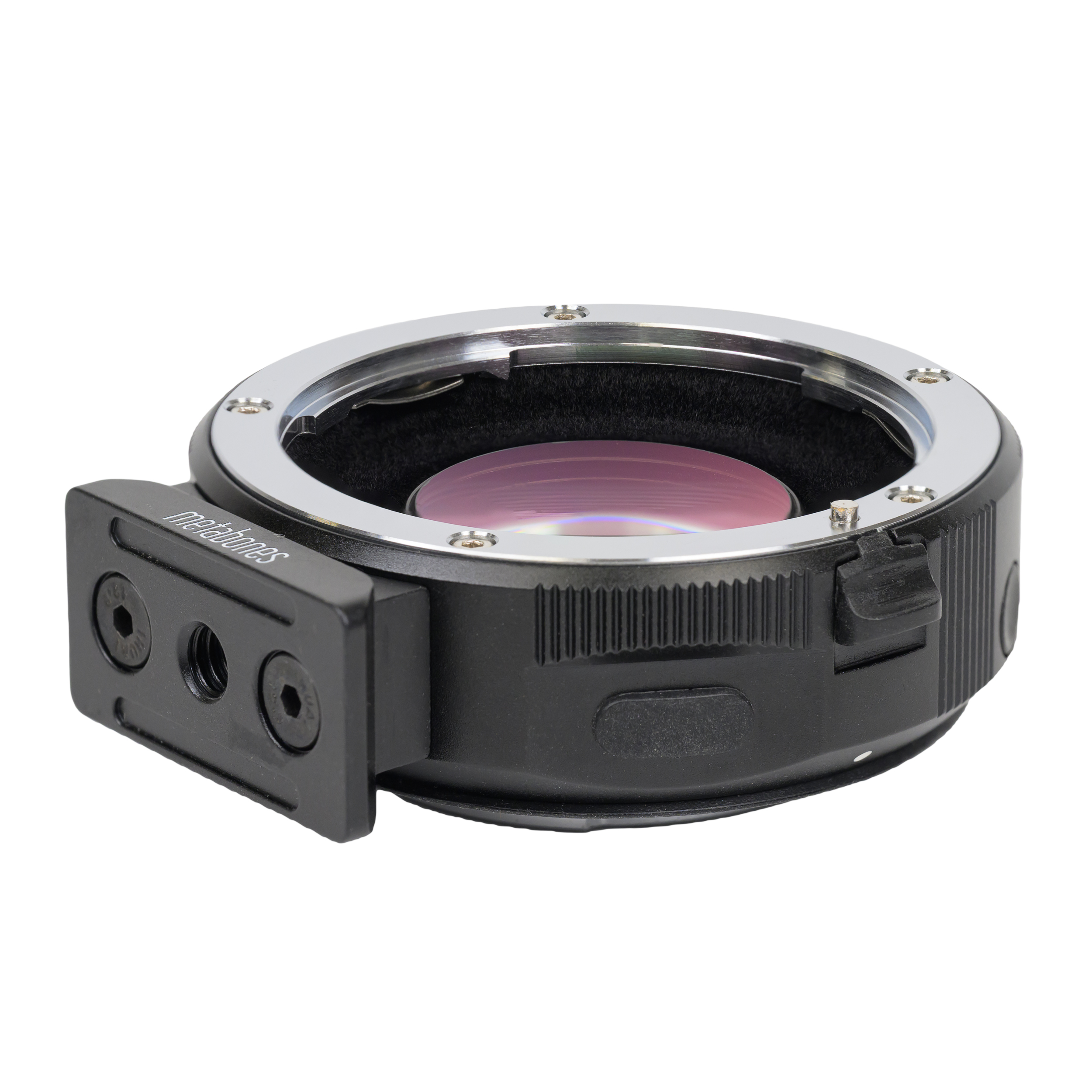

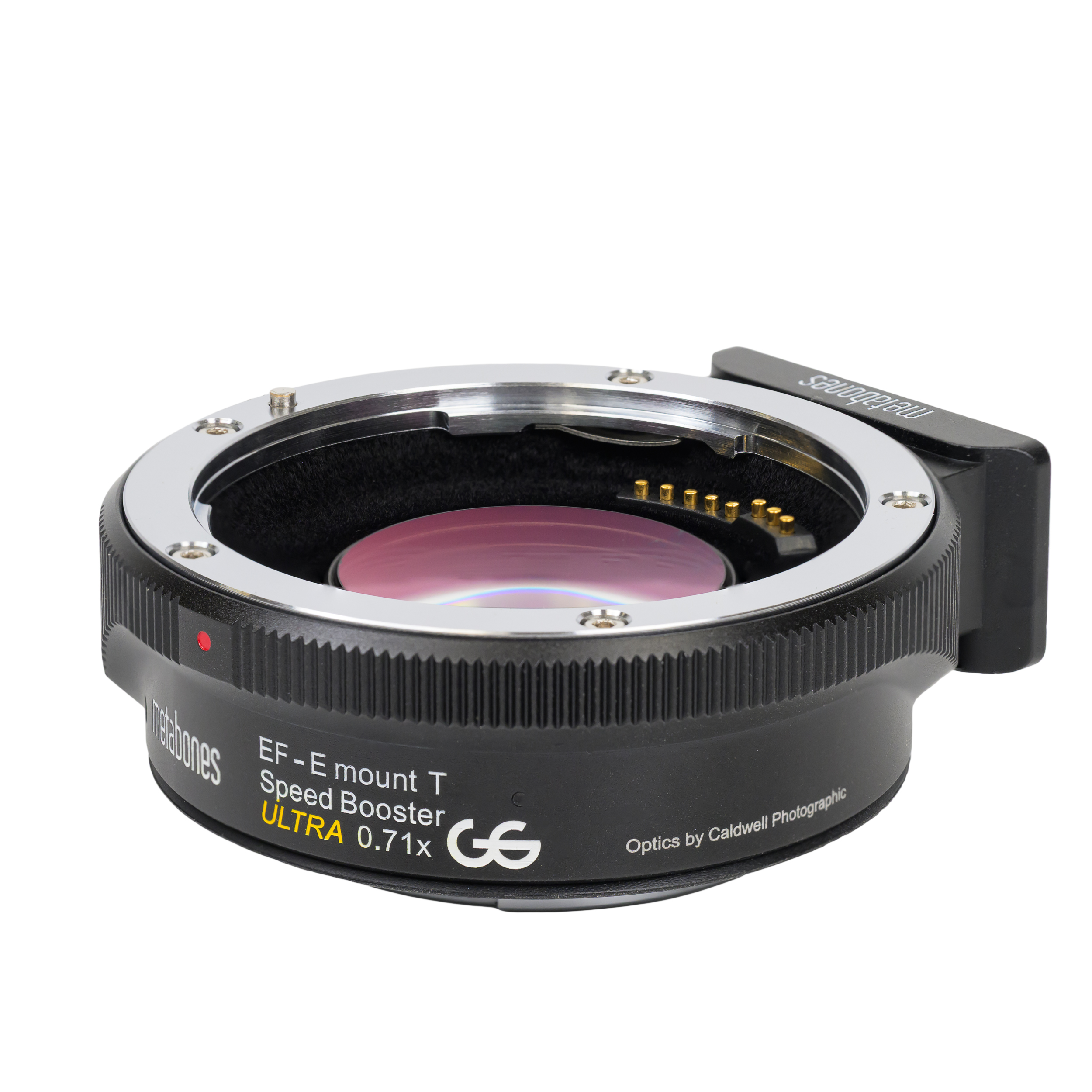

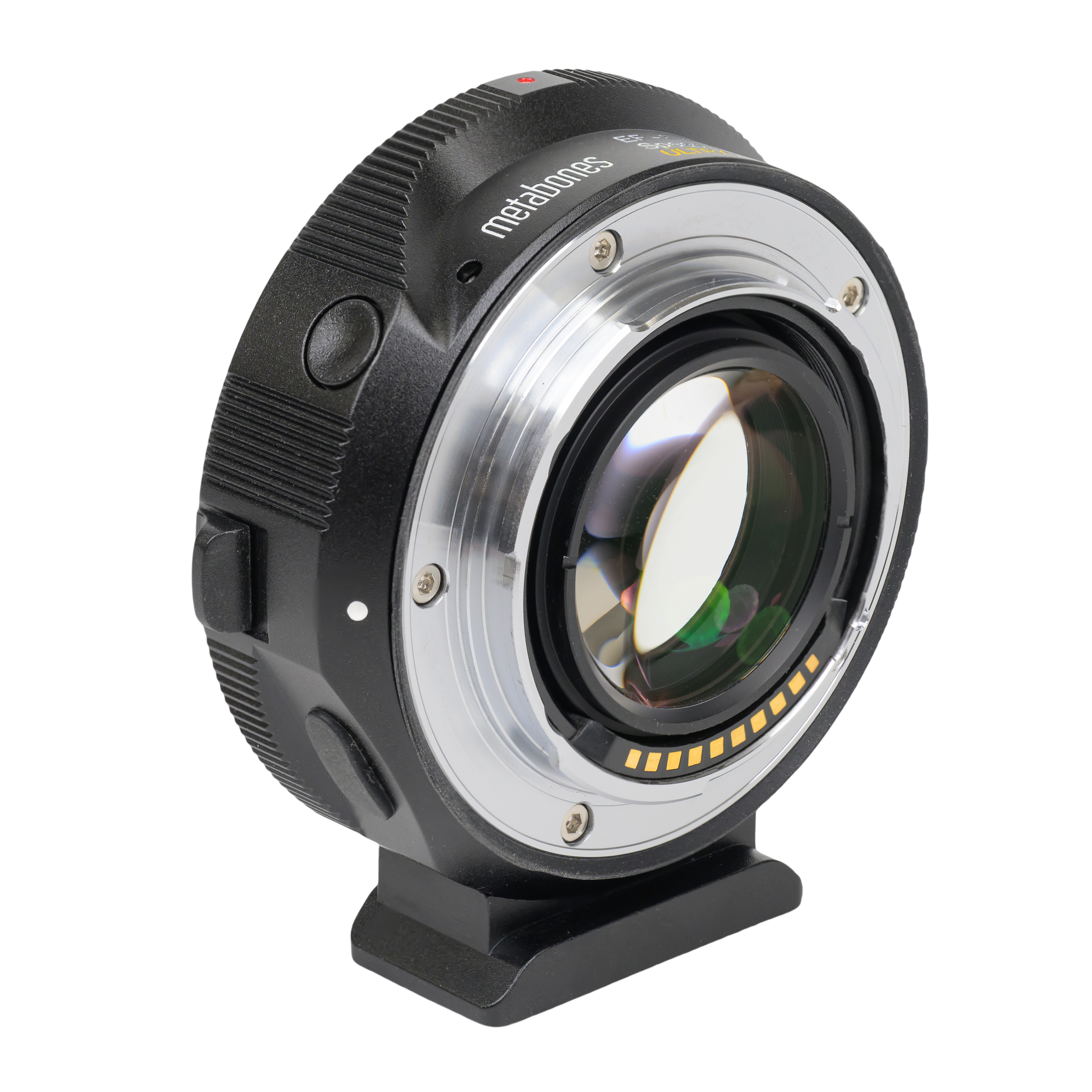

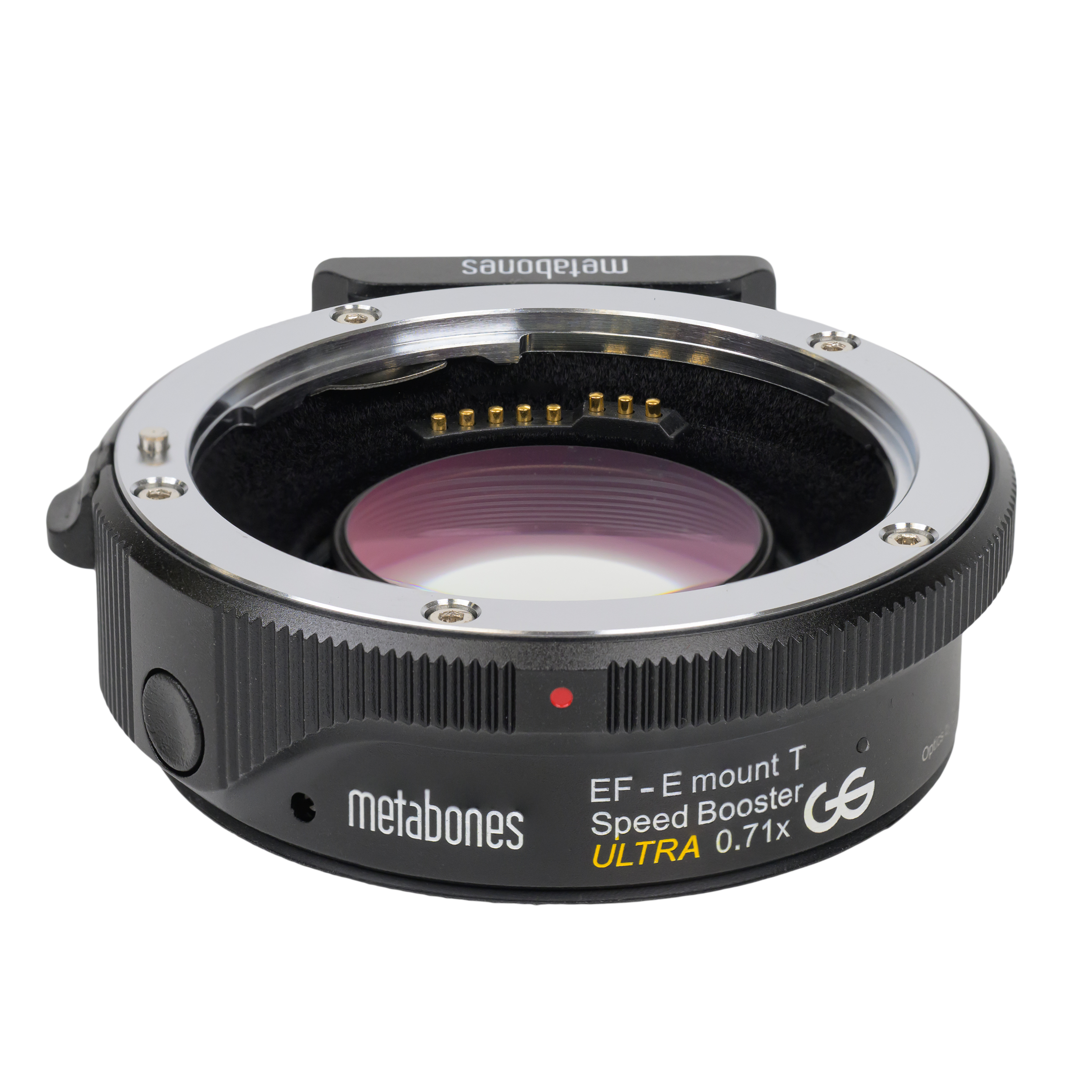

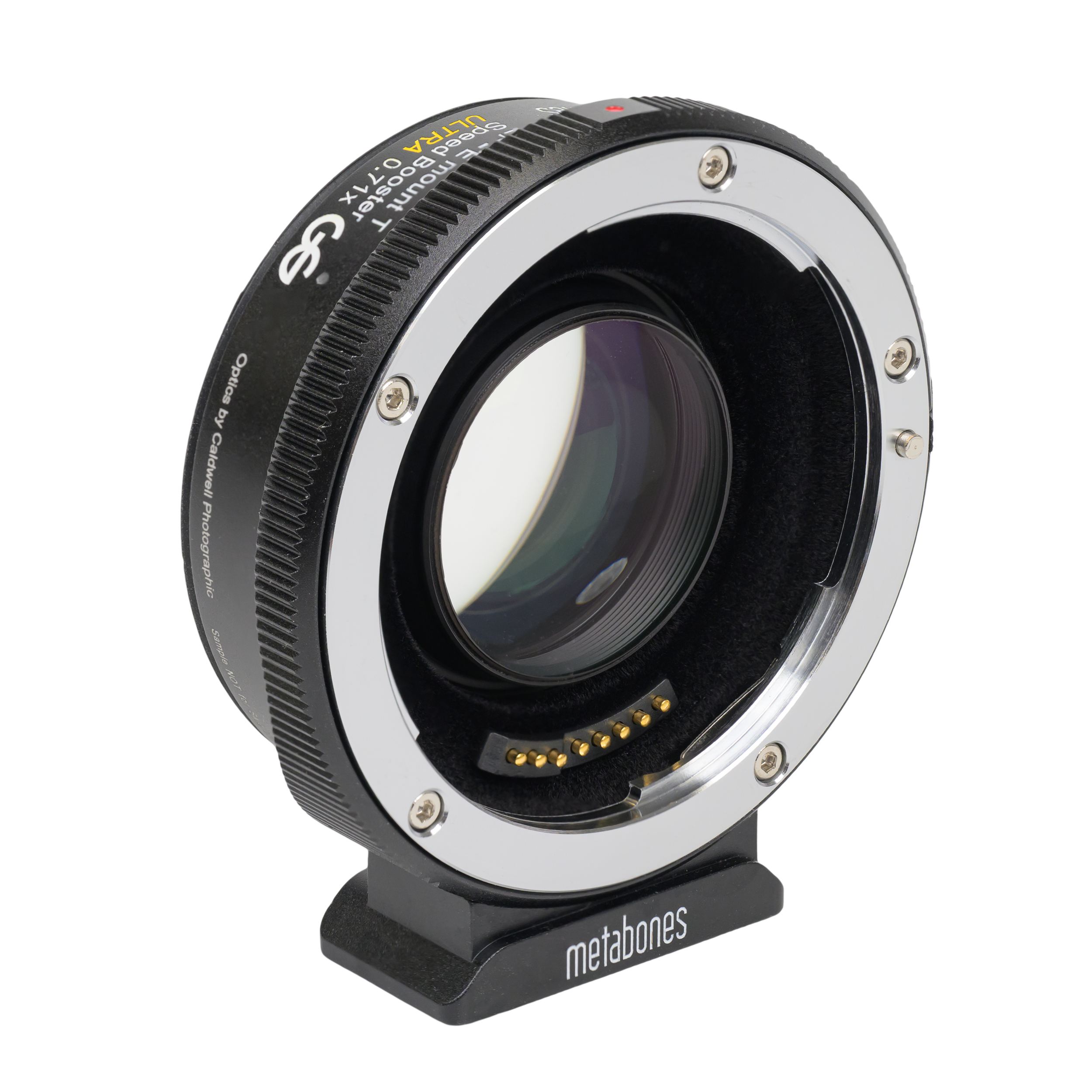

Canon EF Lens to Sony E-mount T Speed Booster ULTRA 0.71x G6 (Gen 6)


Key Features

Features and benefits   Limitations

Metabones Exclusive

  • Patented 5-element/4-group optical design incorporating ultra-high index tantalum-based optical glass by Caldwell Photographic in the USA.
  • If both your lens supports optical image stabilization (OIS) and your camera supports sensor-shift, in-body image stabilization (IBIS), the choice is yours on which one to use, or have both of them work in harmony.
  • Smooth iris support with the latest Canon (2009+), Tamron (SP series 2013+) and Sigma (2016+) lenses.
  • Custom function button (called Focus Hold button) assignable to more than 50 functions, such as Aperture Preview and Eye-AF, on A9, A7 series, A6500 and A6300.
  • Dedicated switch controls in-body image stabilization (IBIS) on Sony cameras equipped with SteadyShot INSIDE.
  • Compatible with Sony FS7 Mark II camera.
  • Cinema EOS lens (CN-E) support, including power zoom, AF and auto iris.
  • Rubber gasket protects E-mount connection from dust and moisture.
  • Detachable tripod foot, compatible with Arca Swiss, Markins and Photo Clam ball heads.

Optical/Mechanical

  • Increase maximum aperture by 1 stop.
  • Increase MTF.
  • Makes lens 0.71x wider.
  • Felt material flocked inside to reduce internal reflection.

Electronic

  • AF-C tracking during high-speed drive at up to 10fps on Sony A9, A7III and A7RIV.
  • Fast contrast-detection AF on all E-mount cameras with most lenses.
  • Pure phase-detection autofocus support on A9, A7III, A7RIII, A7RII, A7II, A6600, A6500, A6400, A6300 and A6100.
  • Supports 5-axis in-body image stabilization of A7RIV, A7III, A7RIII, A7II, A7RII and A7SII. (Distance information from lens required; 3-axis IBIS if the lens does not transmit distance information.)
  • Powered by camera body. No external power source required.
  • LED indicator shows operation mode, OIS (optical image stabilization) activity and communication status.
  • Efficient switched-mode power supply.
  • Supports image stabilization (IS) lenses.
  • Supports electronic manual focusing (e.g. EF 85/1.2L II and discontinued EF 50/1.0L)
  • EXIF support (focal length, aperture, lens name)
  • Distance and zoom display on VG and FS series camcorders, A9, A7 series, A6500 and A6300 (lens with distance information support required).
  • Auto magnify (lens with distance information support required)
  • Auto "APS-C Size Capture" on full-frame cameras with Canon EF-S lenses and many third-party DX lenses.


Optical/mechanical

  • Full-frame lens required. EF-S/DX/DC/Di II lenses are NOT supported.
  • Speed Booster ULTRA is designed to cover an APS-C image circle which is not big enough to cover a full-size 36mm x 24mm sensor. On a full frame camera body (A7 series, NEX-VG900) the camera needs to have "APS-C/Super 35mm" set to either "Auto" or "On".

Autofocus

  • AF-C is supported on A9, A9, A7RIV, A7RIII, A7SIII, A7IV, A7III, A7RII, A7II, A6600, A6500, A6400, A6300 and A6100 only.
  • Continuous video AF is functional in Advanced mode only, but performance may be unsatisfactory.
  • On Sony A9, only phase-detection autofocus is supported. Contrast-detection autofocus may not work satisfactorily.
  • AF may not work if the maximum aperture of the lens plus any EF Extender or other teleconverter attached is smaller than f/8 before boost or smaller than f/5.6 after boost.
  • The first few autofocus attempts are used to calibrate the lens and as a result may not lock successfully on the target. Half-press the shutter release button again and autofocus will lock successfully.
  • Autofocus may have difficulty locking onto subjects which are very close to the nearest focusing distance of the lens.
  • Autofocus accuracy depends heavily on the design and working condition of the lens. Lenses with hidden problems which may not be apparent on Canon DSLRs will lead to inaccurate and unreliable autofocus on Sony. Typical problems of this kind that we have seen include an unsmooth/erratic autofocus mechanism (e.g. getting stuck intermittently at a certain focusing distance), a faulty/worn-out distance encoder or other faulty/worn-out internal sensors.

Other

  • No support for lens corrections such as peripheral shading, CA and distortion.
  • Use of Canon Cinema lenses such as CN-E 18-80mm T4.4 for still photography is not supported. (Functional, but slower than lenses designed for still photography.)
  • Some EF-mount lenses may make audible noises during iris changes and autofocus, which may be picked up by the built-in microphone of the camera during video recording. Use of an external microphone is advised. Some of the recently-introduced Canon-brand lenses are very quiet, however.
  • Early Tamron VC lenses such as the AF 28-300/3.5-6.3 XR Di VC LD Aspherical [IF] Macro (model A20), AF 18-270/3.5-6.3 Di II VC LD Aspherical [IF] MACRO (model B003), SP AF 17-50mm F/2.8 XR Di II VC LD Aspherical [IF] (model B005) may not be able to freely switch between OIS and IBIS because they may not report IS activity status. Later Tamron VC lenses equipped with USD or PZD focus motors are fine.
  • Some aftermarket battery grips may cause the aperture to change erroneously. This is a bug in the aftermarket battery grip but NOT arising from the Metabones Speed Booster. Turn off the aftermarket battery grip or use a genuine Sony battery grip.

Disclaimer: we are NOT licensed, approved or endorsed by Sony or Canon.



Description

Compatible Camera Bodies:

  • Sony alpha A1 II, A1, A9 III, A9 II, A9, A7R VI, A7R V, A7R IV, A7R III, A7R II, A7R, A7CR, A7C II, A7C, A7S III, A7S II, A7S, A7V, A7IV, A7III, A7II, A7  (APS-C Crop mode)
  • ZV-E10 II, ZV-E10*
  • A6700, A6600, A6500, A6400, A6300, A6000, A5000
  • ILME-FX30*
  • ILME-FX2 (Crop mode)*
  • PXW-FS7M2, PXW-FS5M2, PXW-FS5, PXW-FS7, NEX-FS700, NEX-FS100
  • PXW-FX9 (Crop mode)*
  • VENICE (Crop mode)*
  • NEX-EA50, NEX-VG900, NEX-VG30, NEX-VG20, NEX-VG10
  • NEX-7, NEX-6, NEX-5R, NEX-5N, NEX-5, NEX-C3, NEX-3

* for using the VENICE, FX and FS series cameras, please switch the adapter to Advance Mode(LED in red colour).



EF-E Product Matrix


Note: your PayPal receipt is your order confirmation. There is no separate email confirmation until shipment takes place.


TruePDAF Technology™

TruePDAF Technology™ works by having additional data tailored for your lens, resulting in the highest performance possible with a lens mount adapter. Lens profile data of the following lenses are stored in your Speed Booster or Smart Adapter. The LED turns magenta (instead of blue) to indicate that a matching lens profile is found and TruePDAF Technology™ is operational.


Supported Cameras for TruePDAF Technology™
Sony A7 IV or newer

Clarification: all Alpha series high-end camera that is capable of PDAF will get PDAF, including A7 II and above. A7 IV and newer, when paired with a supported lens listed below, have higher PDAF performance that is often indistinguishable from native lenses. If your camera is not on the list but is capable of PDAF, it will still have excellent performance, just not reaching the level of a native lens.

Lenses with TruePDAF Technology™ Support

Clarification: all your autofocus lenses will get PDAF no matter they are on this list or not. The lenses on this list will get even better PDAF performance.


Canon EF8-15mm f4L Fisheye USM
Canon EF16-35mm f2.8L USM
Canon EF16-35mm f2.8L II USM
Canon EF16-35mm f4L IS USM
Canon EF17-35mm f2.8L USM
Canon EF17-40mm f4L USM
Canon EF20-35mm f2.8L
Canon EF20-35mm f3.5-4.5 USM
Canon EF24-70mm f2.8L USM
Canon EF24-70mm f2.8L II USM
Canon EF24-85mm f3.5-4.5 USM
Canon EF24-105mm F4L IS USM
Canon EF24-105mm f4L IS II USM
Canon EF28-70mm f3.5-4.5 II
Canon EF28-80mm f3.5-5.6 II
Canon EF28-90mm f4-5.6 II USM
Canon EF28-105mm f3.5-4.5 USM
Canon EF28-105mm f3.5-4.5 II USM
Canon EF28-105mm f4-5.6 USM
Canon EF28-135mm f3.5-5.6 IS USM
Canon EF28-200mm f3.5-5.6 USM
Canon EF35-70mm f3.5-4.5
Canon EF35-80mm f4-5.6 III
Canon EF35-135mm f3.5-4.5
Canon EF35-135mm f4-5.6 USM
Canon EF35-350mm f3.5-5.6L USM
Canon EF35mm f1.4L USM
Canon EF35mm f2
Canon EF40mm f2.8 STM
Canon EF50mm F1.4 USM
Canon EF50mm f1.8
Canon EF50mm f1.8 II
Canon EF50mm f2.5 Compact Macro
Canon EF55-200mm f4.5-5.6 USM
Canon EF70-200mm f2.8L USM
Canon EF70-200mm f2.8L IS II USM
Canon EF70-200mm f4L USM
Canon EF70-200mm f4L IS USM
Canon EF70-300mm f4-5.6 IS USM
Canon EF70-300mm f4-5.6 IS II USM
Canon EF100-300mm f4.5-5.6 USM
Canon EF100-300mm f5.6
Canon EF100-400mm f4.5-5.6L IS USM
Canon EF100mm f2.8 Macro
Canon EF100mm f2.8L Macro IS USM
Canon EF135mm f2L USM
Canon EF180mm f3.5L Macro USM
Canon EF200mm f1.8L USM
Canon EF200mm f2.8L II USM
Canon EF300mm f2.8L USM
Canon EF Extender 1.4x I/II/III
Canon EF Extender 2x I/II/III
Samyang AF 85mm F1.4
Sigma 12-24mm F4.5-5.6 EX DG Ashperical HSM
Sigma 20mm F1.4 DG HSM Art
Sigma 24-70mm F2.8 DG OS HSM Art
Sigma 24mm F1.4 DG HSM Art
Sigma 24mm F1.8 EX DG Aspherical Macro
Sigma 28-80mm F3.5-5.6 Aspherical Macro HF
Sigma 28mm F1.4 DG HSM Art
Sigma 28mm F1.8 EX DG Aspherical Macro
Sigma 35mm F1.4 DG HSM Art
Sigma 50mm F1.4 DG HSM Art
Sigma 70-300mm F4-5.6 DG OS
Sigma 70mm F2.8 DG Macro Art
Sigma 85mm F1.4 DG HSM Art
Sigma 85mm F1.4 EX DG HSM
Sigma 100-400mm F5-6.3 DG OS HSM Contemporary
Sigma 105mm F1.4 DG HSM Art
Sigma 150-600mm F5-6.3 DG OS HSM Contemporary
Sigma APO 50-500mm F4-6.3 EX DG HSM
Sigma APO 50-500mm F4.5-6.3 DG OS HSM
Sigma APO 135-400mm F4.5-5.6 RF ZEN
Sigma APO 300-800mm F5.6 EX DG HSM
Sigma APO 70-210mm F2.8
Sigma Macro 70mm F2.8 EX DG
Sigma Macro 90mm F2.8
Sigma Macro 105mm F2.8 EX DG OS HSM
Tamron 28-300mm F3.5-6.3 Di VC PZD
Tamron AF 28-200mm F3.8-5.6 Aspherical 71D
Tamron AF 28-300mm F3.5-6.3 XR Di LD Aspherical [IF] Macro A061
Tamron SP 24-70mm F/2.8 Di VC USD
Tamron SP 70-200mm F/2.8 Di VC USD
Tamron SP 70-300mm F/4-5.6 Di VC USD
Tamron SP 90mm F/2.8 Di Macro VC USD
Tamron SP 150-600mm F/5-6.3 Di VC USD
Tamron SP AF 180mm F3.5 Di LD [IF] Macro B01
Tamron SP AF 200-500mm F5.0-6.3 Di LD [IF] A08
Tamron SP AF28-75mm F/2.8 XR Di LD Aspherical A09
Tamron SP AF70-200mm F2.8 Di



Electronic Features

  • Phase-detection autofocus (PDAF) is supported no matter which AF lens is used. Adapters support PDAF by translating pertinent metadata about the optics between the lens interfaces. In this way, broad support of the widest range of lenses is made possible.
  • Excellent video AF and AF-C performance on cameras with PDAF support.
  • Electronic manual focusing (e.g. EF 85/1.2L II, EF 50/1.8 STM and discontinued EF 50/1.0L)
  • Lens iris/aperture is set by the controls on the camera body.
  • Both optical image stabilization (IS) lens and in-body image stabilization (IBIS) support, with complete control over which one to use.
  • Smooth iris support with the latest Canon (2009+), Tamron (SP series 2013+) and Sigma (2016+) lens models.
  • LED indicator shows communication status and whether a match is found in the TruePDAF Technlogy™ database.
  • Powered by camera body. With most lenses, no external power source required.

Mechanical Features

  • 'T' true flocking to reduce internal reflection.
  • Rubber gasket protects the camera mount connection from dust and moisture.
  • Aluminum alloy and brass construction with chromium plating.
  • Satin surface finish.
  • Detachable tripod foot compatible with Arca Swiss Style ball head, such as Markins and Photo Clam or attach to quick release plate by a 1/4"-20 screw. An optional Metabones Mount-Rod Support Kit II is available to securely mount the adapter to your 15mm support rods system.



Lens Compatibility List

 Compatible Lenses

 Incompatible Lenses

  • Canon CN Cinema Lens(see note 1)
  • Canon EF Lens

  • Canon EF Extender

  • Carl Zeiss ZE Lens

  • Sigma EF Lens

  • Tamron EF Lens

  • Tokina EF Lens

  • Contax N lenses modified by Conurus

  • Canon EF Extender 1.4x (all versions)

  • Canon EF Extender 2x (all versions)



  • Laowa 200mm F/2.0
  • Tamron 70-300mm F/4-5.6 VC USD A005
  • Tokina Opera 50mm F/1.4



 Limitations

No Lens OIS/VC Support

  • Tamron SP 15-30/2.8 VC USD A012
  • Tamron 150-600mm F/5-6.3 VC USD A011
  • Tamron 28-300mm f/3.5-6.3 XR Di Macro A06



 Cannot zoom to widest position even after modification

  • Canon EF-S 18-135mm F/3.5-5.6 IS STM
  • Canon EF-S 18-135mm F/3.5-5.6 IS USM (Nano)



 No AF Support

  • Tamron SP 17-50mm F/2.8VC B005
  • Tamron 28-300mm F/3.5-6.3 VC A20
  • Sigma 18-125mm F/3.5-5.6DC OS HSM



 No Iris Support without External Power Supply

  • Canon EF24-70mm F/2.8L USM (I)
  • Canon EF100mm F/2.8 USM Macro (non-L)
  • Tamron 18-270mm F/3.5-6.3 VC PZD B008



 AF may not be accurate

  • Canon EF 50mm f/1.8 II
  • Canon EF 28-70mm f/3.5-4.5 II
  • Sigma 50mm f/1.4 EX HSM
  • Tamron 18-250mm f/3.5-6.3 Di II Macro A18
  • Tamron 24-70mm f/2.8 VC USD A007
  • Tamron 28-300mm f/3.5-6.3 XR Di Macro A06
  • Tokina AT-X PRO 11-16mm f/2.8 DX (I)





Unsupported List

  • Native teleconverters
  • Lens correction such as peripheral shading, CA and distortion
  • AF may not work if the maximum aperture of the lens plus any EF Extender or other teleconverter attached is smaller than f/8.
  • Some early film-era lenses have a large amount of backlash and may not be able to achieve the AF accuracy required for digital cameras. Old lenses with faulty sensors due to wear and tear may lead to AF problems on a mirrorless camera even though the lens may appear to function normally on a DSLR.
  • Focus confirmation "chip" (e.g. Dandelion)
  • M42 screw mount adapters (see note 3)
  • Stacking non-Metabones/non-Conurus mount adapters on top (see note 3 and list of lenses which require modification below.)



Notes:

Note(1) CN-E Compact-Servo lens with some cameras may require external power to autofocus.

Canon CN series (without the E suffix) always require external power supplied through a 12-pin Hirose connector.

Use of Canon Compact-Servo Cinema lenses such as CN-E 18-80mm T4.4 for still photography is not supported. (May be functional, but much slower than lenses designed for still photography.)

Note(2) With fast lenses (faster than f/1.4), the pre-boost apertures will be displayed in the camera.

Note (3) Some improperly-made M42 screw mount adapters may short the electronic contacts of the Speed Booster/ Smart Adapter and cause damage to the adapter and/or camera body.




List of manual focus lenses which REQUIRE MODIFICATION to be used on Speed Booster®

Many manual focus lenses have rear protrusions (spikes, levers, other appendages) which would damage the optics and/or housing of Speed Booster® They need to be modified before they can be safely used on Speed Booster® Check and make sure there are no rear protrusions from the adapter/lens combination before using on Speed Booster®. Scratches and damages caused by rear protrusions or by poor quality adapters are not covered by warranty. The following is an incomplete list of lenses known to be incompatible.

Leica R

Super-Elmar-R 15mm

Elmarit R 28/2.8

Elmarit R 35/2.8

Summicron R 50/2

Nikon F

20/2.8 AI-S

Olympus OM

OM 18/3.5

OM 21/2

OM 21/3.5

OM 28/2.8

OM 50/1.8

Pentax K

Every Pentax K-mount lens has a protruding fin and an aperture lever. It does NOT fit.






Why Metabones®?

Since its inception, Metabones has been designing and manufacturing lens adapters recognized among professionals and enthusiasts as leaders in design and workmanship.

Contrary to the popular trend of other factories using an aluminum ring painted black on the camera-body-side, we instead take no short-cut but use precision-machined brass with chromium plating on both the camera-body and the lens sides of our adapters, in order to ensure smooth mounting, great appearance, and durability. The lens side of the adapter features a strong leaf-spring structure, strengthening the adapter-lens connection and ensuring tightness of the lens in order to reduce wear and prevent focus errors and optical alignment issues from appearing.

Metabones uses matte-black treatment to keep internal reflection to a minimum in order to maintain the maximum optical quality possible with the lens.

All Metabones Adapters follow this tradition of uncompromising precision, robust build quality and outstanding finish. Our new Smart AdapterTM series of products add industry-leading electronic interfacing technology from Canada, with true electronic control of the lens' aperture directly from the camera body.

Features

Our Smart AdapterTM  series adapters have the following additional features
